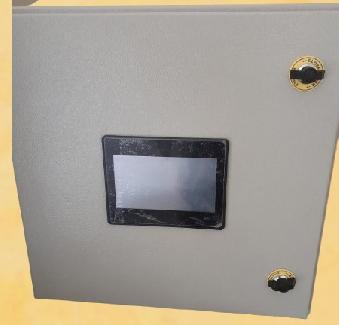

The HMI Panel is designed to provide user-friendly graphical interaction between operators and machines or processes. It allows real-time monitoring, control, and diagnostics of industrial systems, improving productivity, efficiency, and decision-making.
|
Key Features |
|
Touchscreen
graphical interface for real-time control and monitoring |
|
Supports
integration with PLC, VFD, SCADA, and field devices |
|
User-configurable
screens for alarms, trends, data logging, and recipes |
|
Compact,
space-saving design with robust industrial-grade construction |
|
Available
in various screen sizes and IP protection levels |
|
Parameter |
Specification |
|
System
Voltage |
230V AC
/ 24V DC (depending on model and site requirement) |
|
Screen
Sizes Available |
4.3”,
7”, 10.1”, 12.1”, 15” or custom as required |
|
Display
Type |
TFT LCD
/ LED Display |
|
Touch
Technology |
Resistive
/ Capacitive Touch Screen |
|
Resolution |
From
480x272 pixels up to Full HD (model-dependent) |
|
Processor
& Memory |
High-speed
processors with expandable memory & data storage |
|
Communication
Ports |
RS232,
RS485, Ethernet (RJ45), USB, Modbus, Profibus, Profinet |
|
Supported
Protocols |
Modbus
RTU/TCP, Ethernet/IP, CANopen, OPC UA, MQTT, BACnet |
|
Mounting |
Panel
Mounted (Flush) or Wall Mounted |
|
Enclosure
Type |
CRCA
Powder Coated / SS304 / Aluminum / Polycarbonate (for IP65) |
|
Degree
of Protection (IP Rating) |
IP54 /
IP65 (Indoor/Outdoor as per requirement) |
|
Environmental
Operating Conditions |
0°C to
+55°C, Humidity 10% to 90% RH non-condensing |
