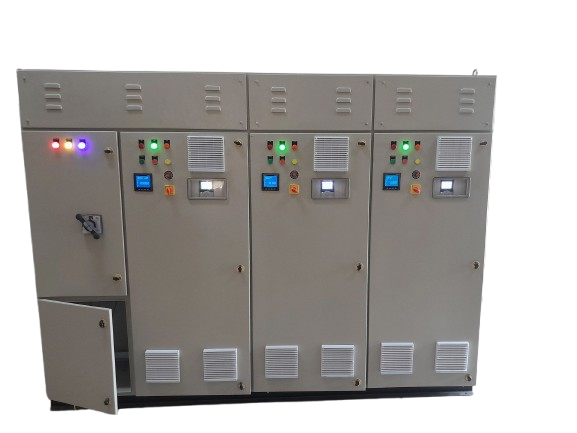

The Motor Control Center (MCC) Panel is designed for centralized control and protection of motors in industrial and commercial applications. It offers easy operation, enhanced safety, and efficient management of multiple motor loads.
|
Key
Features |
|
Modular
design for safe and efficient motor control |
|
Compartmentalized
structure for better segregation of feeders |
|
Supports
DOL, Star-Delta, Soft Starter, and VFD operations |
|
High
durability with powder-coated CRCA steel construction |
|
Available
in both Fixed and Draw-out versions |
|
Parameter |
Specification |
|
Rated
Voltage |
Up to
690V AC |
|
Rated
Current |
Up to
5000A |
|
Frequency |
50 Hz
(± 5%) |
|
Short
Circuit Withstand Capacity |
25kA to
65kA for 1 sec (as per design) |
|
Degree
of Protection (IP Rating) |
IP42 /
IP52 / IP54 / IP55 (Indoor or Outdoor as required) |
|
Form of
Separation |
Form 2b
/ 3b / 4b |
|
Busbar
Material |
Electrolytic
Copper / Aluminium |
|
Busbar
Rating |
As per
load requirement, with adequate derating |
|
Motor
Starters |
DOL,
Star-Delta, Soft Starter, VFD (Variable Frequency Drive) |
|
Feeder
Types |
Power
Feeder, Motor Feeder, Capacitor Feeder, Lighting Feeder |
|
Cable
Entry |
Top /
Bottom (as per site need) |
|
Control
Voltage |
110V /
230V AC or 24V DC |
|
Metering
& Indications |
Digital/Analog
Meters, Multifunction Meters, Indication Lamps |
|
Construction |
CRCA
Sheet Steel Fabricated, Powder Coated, Floor / Wall Mounted |
|
Color |
RAL
7035 / RAL 7032 or customized |
