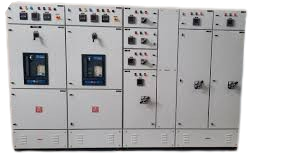

The Power Control Center (PCC) Panel is designed to distribute power to multiple electrical loads while providing effective protection, control, and monitoring. It is widely used in industries, commercial establishments, and utility sectors.
|
Key Features |
|
Robust
and Modular Design for reliable power distribution |
|
Fully
Compartmentalized Structure for enhanced safety |
|
Intelligent
Metering & Monitoring options |
|
Customized
as per IEC, IS Standards & Client Requirements |
|
Feature |
Description |
|
Rated Voltage |
Up to 690V AC |
|
Rated Current |
Up to 6300A |
|
Frequency |
50 Hz (± 5%) |
|
Short Circuit Withstand Capacity |
25kA to 100kA for 1 sec (as per design) |
|
Degree of Protection (IP Rating) |
IP42 / IP52 / IP54 / IP55 (as per requirement) |
|
Form of Separation |
Form 2b / 3b / 4b (as per IS/IEC Standards) |
|
Busbar Material |
High Conductivity Electrolytic Copper / Aluminium |
|
Busbar Rating |
As per load requirement, with suitable derating
factors |
|
Cable Entry |
Top / Bottom (as per site requirement) |
|
Metering & Indications |
Digital/Analog Meters, Multifunction Meters,
Indicator Lamps |
|
Protection Devices |
ACB / MCCB / SFU / MCB / Contactors / Relays |
|
Control Voltage |
110V / 230V AC or 24V DC (as required) |
|
Construction |
CRCA Sheet Steel Fabricated, Powder Coated, Floor
Mount |
|
Color |
RAL 7035 / RAL 7032 or as per customer
specification |
