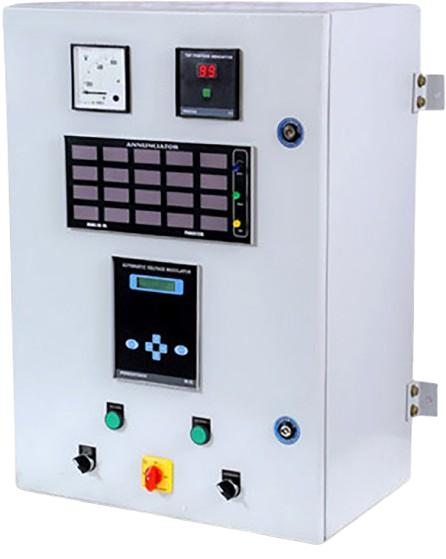

RTCC Panel (Remote Tap Changer Control Panel)

Description

An RTCC Panel (Remote Tap Changer Control Panel) is used to remotely control and monitor the tap position of an on-load tap changer in power transformers. It enables voltage regulation by adjusting transformer taps without manual intervention, ensuring stable output voltage under varying load conditions. Equipped with control switches, position indicators, AVR, and protection features, RTCC panels improve operational efficiency, protect equipment, and support integration with SCADA/PLC systems for automation and remote monitoring.

Technical Descriptions:

Parameter	Specification
Input Supply	110V AC / 230V AC
Control Voltage	24V DC / 110V AC

Control & Indication
Raise / Lower Tap Switch
Tap Position Indicator (Mechanical / Digital)
AVR (Automatic Voltage Regulator) with selectable setpoints

Protection Features
Overvoltage / Undervoltage Protection
Tap Position Locking
Communication: SCADA/PLC compatible (optional)
