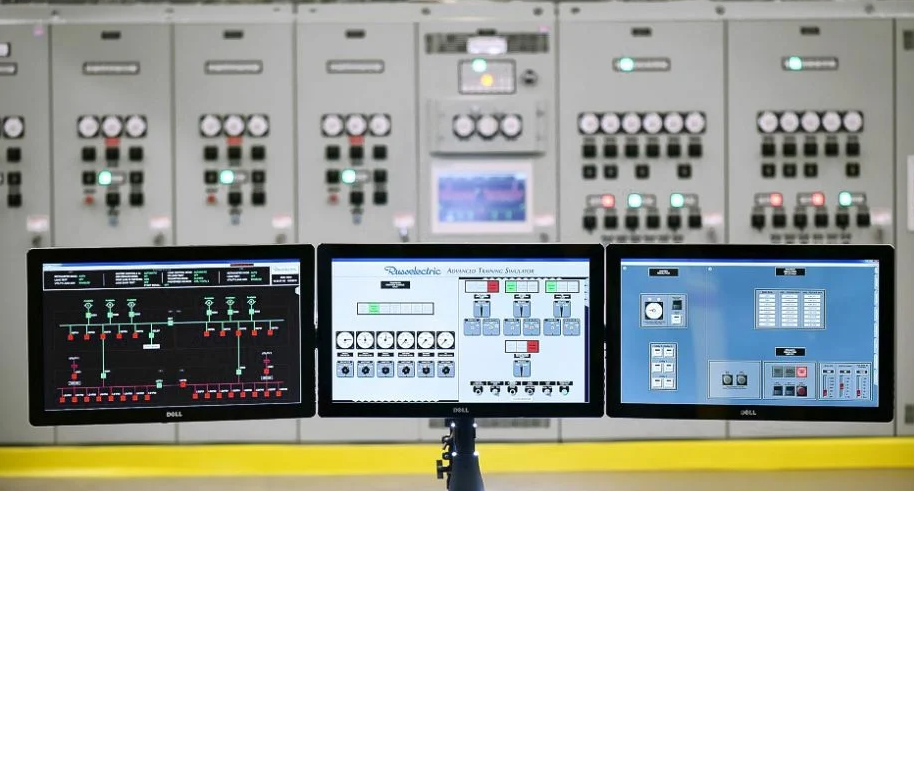

A SCADA (Supervisory Control and Data Acquisition) Control Panel is designed to monitor, control, and manage industrial processes in real-time through advanced data acquisition, communication, and visualization. It enables operators to make informed decisions, improve efficiency, and ensure safety across complex systems
|
Key Features |
|
Centralized
monitoring and control of industrial processes |
|
Real-time
data acquisition, logging, and historical trend analysis |
|
Alarm
management and event tracking for safety and performance |
|
Remote
access and control via web-based or desktop SCADA software |
|
Seamless
integration with PLC, RTU, VFD, Instrumentation, and Field Devices |
|
Parameter |
Specification |
|
System
Voltage |
415V
AC, 3 Phase, 50 Hz |
|
Control
Voltage |
24V DC
/ 110V AC / 230V AC (as per project requirement) |
|
PLC
Brands Supported |
Siemens,
Allen Bradley, Schneider, Delta, Mitsubishi, Kinco, etc. |
|
SCADA
Software Supported |
Wonderware,
WinCC, FactoryTalk, Indusoft, Ignition, Schneider Citect |
|
HMI/SCADA
Interface |
Industrial
PC / Touch Panel PC / Thin Client / Operator Station |
|
Data
Logging & Historian |
On-premise
or cloud-based data storage |
|
Communication
Protocols |
Modbus
RTU/TCP, Profibus, Profinet, EtherNet/IP, OPC, MQTT, BACnet |
|
I/O
Configuration |
Digital
Inputs/Outputs (DI/DO), Analog Inputs/Outputs (AI/AO) |
|
Networking |
Ethernet,
Fiber Optic, RS485, Wireless (optional) |
|
Protections |
Overload,
Short Circuit, Surge Protection, EMI/RFI Filtering |
|
Panel
Type |
Floor
Standing / Wall Mounted |
|
Construction |
CRCA
Sheet Steel, Powder Coated, RAL 7035 / RAL 7032 finish |
|
Cable
Entry |
Top /
Bottom (site specific) |
|
Degree
of Protection (IP Rating) |
IP42 /
IP54 / IP55 (Indoor/Outdoor) |
|
Redundancy
(Optional) |
Dual
Power Supply, Redundant Servers, Hot Standby Controllers |
