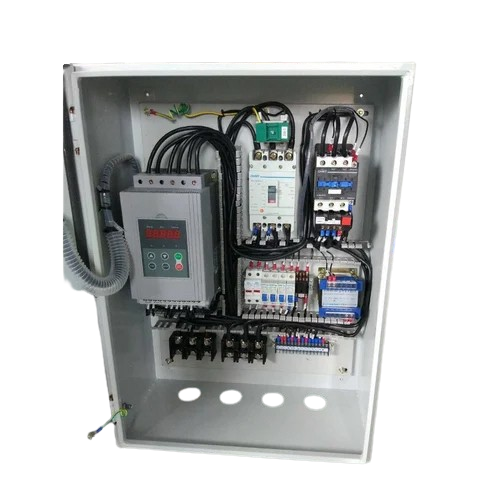

The Soft Starter Panel is designed to control the acceleration and deceleration of AC induction motors by gradually ramping up voltage, thereby reducing mechanical stress, inrush current, and extending equipment life. It is widely used in industries where smooth motor starting is essential.
|
Key Features |
|
Smooth
motor acceleration and deceleration |
|
Reduces
starting current and mechanical shock |
|
Prevents
voltage dips and extends motor lifespan |
|
Built-in
protection features for motor safety |
|
Supports
manual and automatic control modes |
|
Parameter |
Specification |
|
Rated
Voltage |
415V
AC, 3 Phase, 50 Hz |
|
Motor
Capacity Range |
5 HP to
1000 HP (or higher as per requirement) |
|
Soft
Starter Brands Supported |
Siemens,
Schneider, ABB, Allen Bradley, Danfoss, L&T, etc. |
|
Control
Voltage |
24V DC
/ 110V AC / 230V AC (as per project need) |
|
Starting
Methods |
Voltage
Ramp, Current Limit, Torque Control |
|
Bypass
Contactor |
Built-in
/ External (to improve efficiency after start-up) |
|
Communication
Options |
Modbus
RTU, Profibus, Profinet, Ethernet/IP (optional) |
|
Protection
Features |
Overload,
Phase Loss, Phase Imbalance, Over-temperature, Stall, Undercurrent |
|
Control
Interface |
Keypad
/ HMI (optional) |
|
Panel
Type |
Floor
Mounted / Wall Mounted |
|
Construction |
CRCA
Sheet Steel, Powder Coated |
|
Degree
of Protection (IP Rating) |
IP42 /
IP52 / IP54 / IP55 (Indoor/Outdoor as required) |
|
Cable
Entry |
Top /
Bottom (site specific) |
|
Cooling
System |
Natural
Air / Forced Air Cooling |
|
Color |
RAL
7035 / RAL 7032 or as per client preference |
