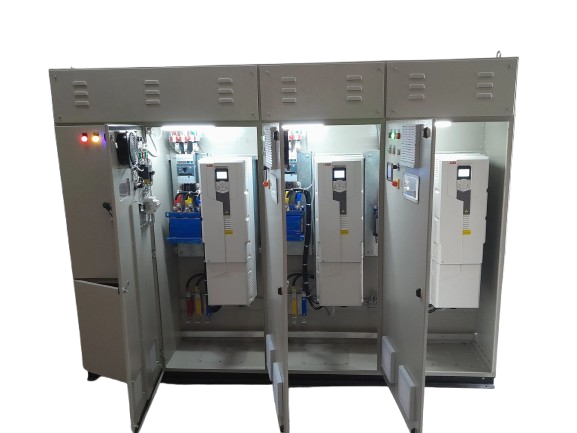

The VFD Panel is designed to control the speed and torque of AC motors by varying the input frequency and voltage, delivering energy savings, precise process control, and extended equipment life. It is widely used in industries for motor-driven applications such as pumps, fans, conveyors, and compressors.
|
Key Features |
|
Smooth
motor acceleration & deceleration |
|
Precise
speed control and energy optimization |
|
Reduced
mechanical stress on motors and machinery |
|
Compatible
with PLC, SCADA, and automation systems |
|
Available
in single-drive or multi-drive configurations |
|
Parameter |
Specification |
|
Input
Supply Voltage |
415V
AC, 3 Phase, 50 Hz |
|
Drive
Type |
VFD
(Sensorless Vector Control / V/f Control / Closed Loop) |
|
Applicable
Motor Power Range |
0.75 kW
to 1000 kW or higher (customizable) |
|
Output
Frequency Range |
0 to
400 Hz (adjustable) |
|
Output
Voltage |
0 to
rated supply voltage |
|
Control
Modes |
Keypad,
Analog Input, Digital Input, Serial Communication |
|
Communication
Protocols |
Modbus
RTU, Modbus TCP/IP, Profibus, Profinet, Ethernet/IP (as required) |
|
Protections |
Overvoltage,
Undervoltage, Overcurrent, Overtemperature, Short Circuit |
|
Cooling
Method |
Forced
Air Cooling / Natural Cooling (based on rating) |
|
Panel
Type |
Floor
Mounted / Wall Mounted |
|
Degree
of Protection (IP Rating) |
IP42 /
IP52 / IP54 / IP55 (Indoor/Outdoor as required) |
|
Cable
Entry |
Top /
Bottom (as per site requirement) |
|
Busbar
Material |
High
Conductivity Copper / Aluminium |
|
Construction |
CRCA
Sheet Steel Fabricated, Powder Coated, Modular Design |
|
Color |
RAL
7035 / RAL 7032 or as specified |
