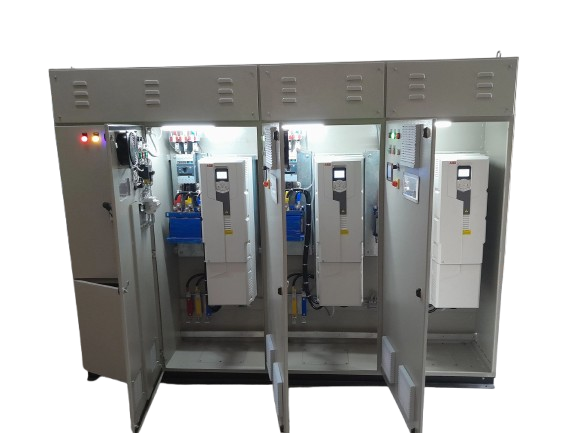

The VFD Panel is designed to control the speed, torque, and direction of AC motors by varying the motor input frequency and voltage. It is widely used in industries to enhance process control, reduce energy consumption, and extend equipment life.
|
Key Features |
|
Precise
speed and torque control for motors |
|
Smooth
acceleration and deceleration to minimize mechanical stress |
|
Significant
energy savings and improved process efficiency |
|
User-friendly
interface with HMI or keypad control |
|
Supports
automatic and manual control modes |
|
Parameter |
Specification |
|
Input
Voltage |
3
Phase, 415V AC ±10%, 50 Hz |
|
Output
Voltage |
0 to
rated input voltage |
|
Power
Range |
0.75 kW
to 1000 kW (customizable as per application) |
|
Frequency
Range |
0 Hz to
400 Hz |
|
Control
Methods |
V/f
Control, Sensorless Vector Control, Closed-loop Vector Control |
|
Drive
Brands Supported |
Siemens,
ABB, Danfoss, Schneider, Allen Bradley, Delta, Yaskawa, etc. |
|
Communication
Protocols |
Modbus
RTU, Modbus TCP/IP, Profibus, Profinet, EtherNet/IP |
|
Display
& Control Interface |
Built-in
Keypad / HMI Touch Screen (optional) |
|
Protection
Features |
Overload,
Overvoltage, Undervoltage, Short Circuit, Ground Fault, Over-temperature |
|
Busbar
Material |
High
Conductivity Copper / Aluminium |
|
Panel
Type |
Standalone
Floor Mounted / Wall Mounted |
|
Cable
Entry |
Top /
Bottom (as per site requirement) |
|
Cooling
System |
Natural
Air Cooling / Forced Air Cooling / Panel Ventilation |
|
Degree
of Protection (IP Rating) |
IP42 /
IP52 / IP54 / IP55 (Indoor/Outdoor) |
|
Construction |
CRCA
Sheet Steel Fabricated, Powder Coated |
|
Color |
RAL
7035 / RAL 7032 or as per client preference |
