Technical Descriptions:

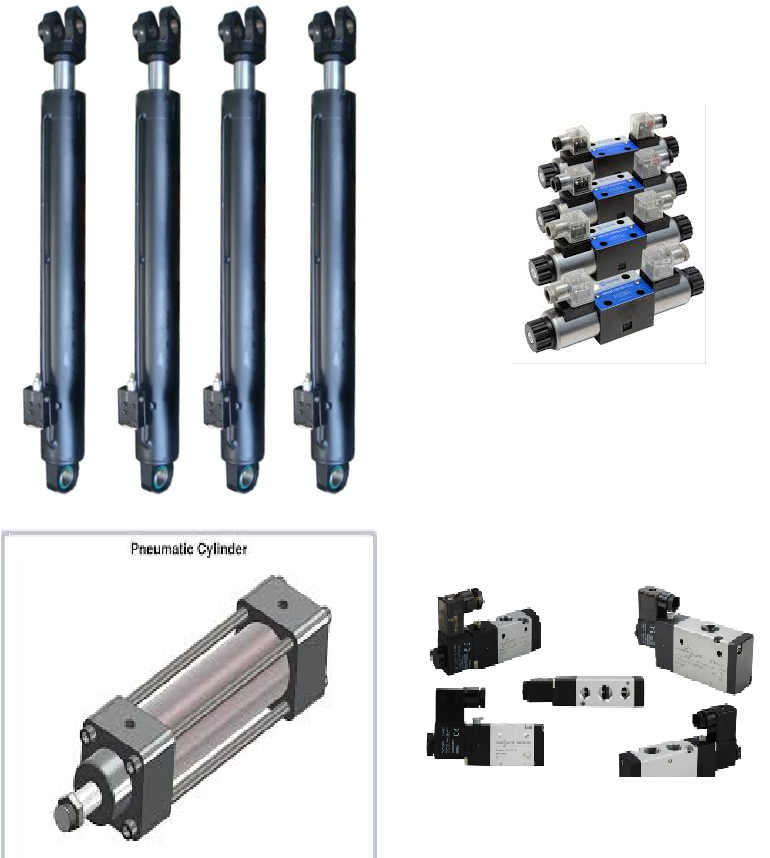

Hydraulic Cylinders

Parameter	Specification
Cylinder Types	Tie Rod, Welded, Mill Duty, Telescopic, Double/Single Acting
Bore Size	25 mm to 500 mm (Customizable)
Stroke Length	Up to 6000 mm (Customizable)
Operating Pressure	Up to 350 Bar
Rod Material	Hard Chrome Plated / Induction Hardened
Seal Types	PU, NBR, Viton, Custom
Mounting Styles	Front/Rear Flange, Clevis, Trunnion, Foot Mount
Applications	Heavy Machinery, Presses, Steel, Marine, Mobile Equipment
Standards & Compliance	ISO 6020/2, ISO 9001:2015, CE (on request)

Valve Type	Specifications
Directional Control Valves	Manual, Solenoid, Pilot Operated
Pressure Control Valves	Relief, Reducing, Sequence, Unloading
Flow Control Valves	Fixed / Adjustable
Proportional Valves	Available for advanced applications
Pressure Rating	Up to 350 Bar
Mounting	Subplate, Threaded, Inline
Applications	Presses, Industrial & Mobile Machines, Mining, Construction

Valve Type	Specifications
Directional Control Valves	2/2, 3/2, 5/2, 5/3 Way (Solenoid / Manual / Pneumatic / Mechanical)
Flow & Check Valves	Available
Pressure Regulators	Available
Valve Material	Aluminium, Brass, Stainless Steel
Operating Pressure	1 to 10 Bar
Connection Types	BSP / NPT Threads, Sub-base Mount
Applications	Assembly Lines, Robotics, Pick-and-Place, Actuation Systems
Standards & Compliance	ISO, CETOP, CE (on request), ISO 9001:2015
